Delta Optical Stryker HD 5-50×56 SFP – DLS-3 MOA
Ask for delivery Time
This riflescope has been designed with sport shooters in mind, who are passionate about long-range shooting in the F-Class/Benchrest formula. It works perfectly where extreme precision is required and single points decide about victory.
There are three reticles to choose from for this riflescope. All are placed in the second focal plane, so that the size of the reticle does not change as the magnification increases. Basic zoom for measuring the size of the target or for estimating distance is 40x.
Proud users of the Stryker HD 5-50×56 are, among others, Christer Jacobsen, who is a Swedish F-Class 2017 winner and Adam MacDonald, who has won the following 2018 championships: The DCRA F-Class National Championships in Ottawa, Eastern Canada F-Class (FTR) Championship and Atlantic Championship in New Brunswick.
The click value of Stryker 5-50×56 HD is 0.05 MIL which is paired with the Miliradian (MIL) based reticles: the DLS-1 & DLS-2. In metric system 1 MIL equals to 100 mm @ 100m. The reticles have been designed to correspond with the click of the scope – 1 click = 0.05 MIL (5mm).
Stryker 5-50×56 HD is also available in 1/8 MOA clicks when paired with DLS-3 reticle which is simply yet effective MOA spaced reticle.
High quality ED glass guarantees bright and sharp image, significantly reduces chromatic aberrations and greatly improves colour reproduction.
Impressive light transmission paired with central illuminated point for quick target acquisition ensures excellent optical performance even in low light conditions.
Sleek and robust 34mm diameter tube provides vertical adjustment up to 300cm. Other noteworthy features include precise and durable mechanics and parallax correction from 10m to infinity.
The lockable turrets of Styker 5-50×56 HD have been designed for deliberate hands-on or gloved usage and are equipped with a ZeroLock mechanism which allows the shooter to set a limit for elevation. The shooter will zero the riflescope at their desired shooting distance, then the ZeroLock is used to make corrections only in elevation and prevents the user from lowering the point of impact below the user defined limit.

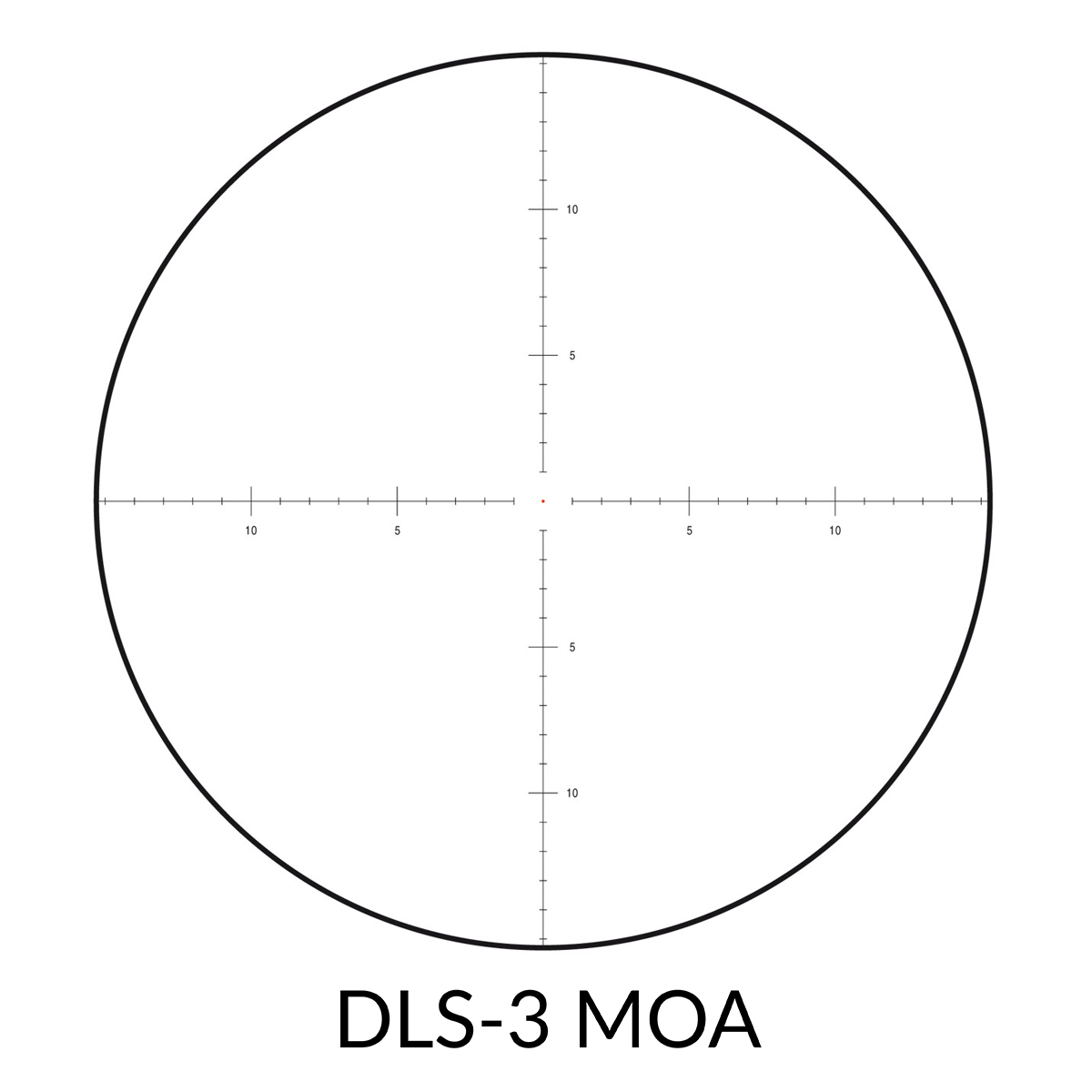

Equivalent to DLS-1 reticle, but scaled in MOA. The aiming point covers 0.1 MOA (2.91 mm) at a distance of 100 m.
All the reticles in the Stryker 5-50×56 HD series have been designed meticulously so that nothing can distract your attention whilst giving your best shots.
- Magnification: 5 – 50 x
- Minimum magnification: 5x
- Maximum magnification: 50 x
- Objective lens diameter: 56 mm
- Reticle: DLS-3
- Illuminated reticle: Yes
- Calibrated Ranging Power: 40x
- Angular field of view [° degrees]: 4.04 – 0.41
- Linear field of view at 100 m [m]: 7.1 – 0.7
- Exit pupil [mm]: 7.2 – 1.1
- Eye relief [mm]: 89-100
- Water resistance: 0.3kg/cm2
- Weight [g]: 1100
- Length [mm]: 363
- One click: 1/8 MOA
- Max. elevation / windage adjustment range : 100 / 50 MOA
- Tube: 34 mm
- Parallax adjustment: Side focus (10 m – ∞)
- Diopter adjustment range: -2D / +3D
- Reticle position: Second focal plane(SFP)
- Functional temperature range [°C]: -20 — +71
- Nitrogen filling: Yes
- Remarks: ZeroLock
- Accessories: Throw levers, Sunshader.
