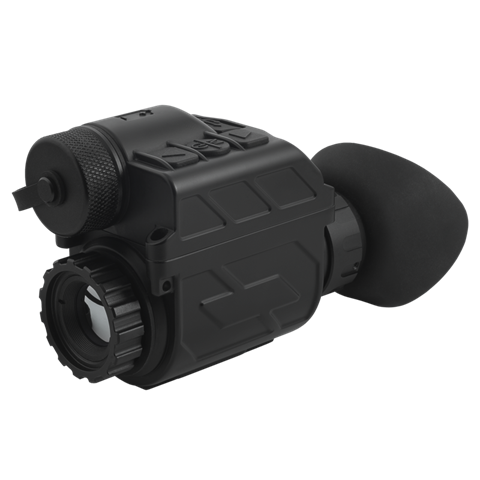

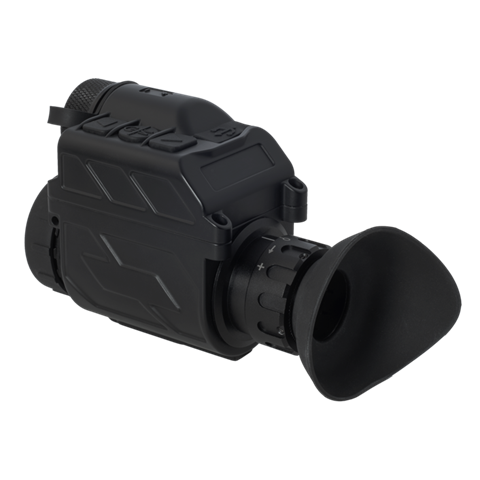

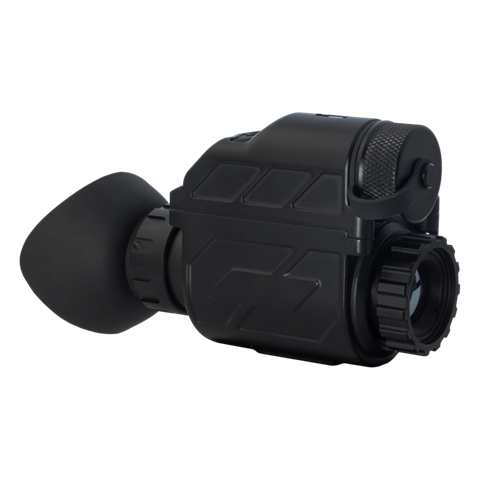

AGM StingIR-640 Tactical Thermal Imaging Goggles with Helmet Mount


The AGM StingIR-640 is a tactical thermal imaging goggles from the absolute top segment of the market, which comes standard with a helmet-bridge. The thermal monocular has a 640×512 detector, a pixel size of 12μm and a 50hz refresh rate (real-time image). The AGM StingIR-640 is specifically designed for the professional user and demanding enthusiast whose both hands must always be free during use. The device is less than 14 cm long and weighs only 220 grams.

Internal highlights:
The camera can detect a person at up to 1.2 km and vehicles at distances of up to 2 km. The viewer gives you a large field of view of 16.3 x 12.3 degrees. The optical magnification is 1x, but with a digital zoom you can further magnify up to 2x, 4x and 8x. You can also use the Picture-in-Picture mode, to further magnify a particular object in the picture. The environment is projected on a razor-sharp OLED display with 1028×768 pixels.

Optimal observation and detection:
You can have the environment displayed based on four color palettes: White Hot, Black Hot, Orange Hot (also known as Outdoor Alert) and Rainbow. You can manually control the brightness and contrast, which are adjustable in 10 levels. You can also use the built-in digital compass and inclinometer, which displays the angle adjustment in degrees.

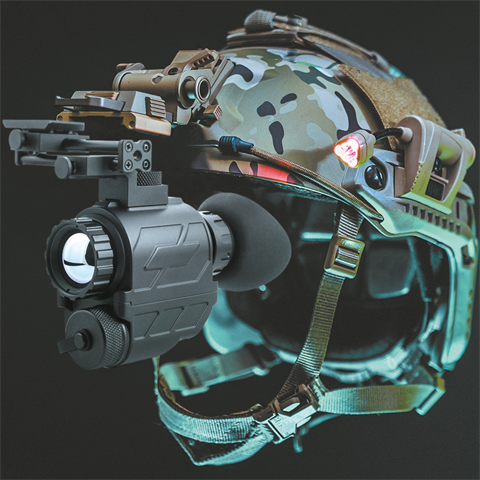

Mounting on a helmet:
With the AGM StingIR you receive a bridge with Dovetail mount, so you can attach the thermal imaging camera to any common helmet or goggle kit (headset). The adapter features a rail, which allows you to position the thermal camera perfectly in front of the desired eye. The NVG mount – which connects your helmet to the bridge – is not included, as it depends on the type of connection on the front of your helmet. You can see what exactly is included in the content description section and the images.

External features and power supply:
The viewer is IP67 certified, so it is water and dust proof. Even at very extreme temperatures from -10°C to +60°C you can use it without any problems. You can power the AGM StingIR in several ways: via continuous power or one CR123, RCR123 or 18650 battery. The camera also has a standby mode to further extend its battery life. Continuous power can be achieved, for example, by attaching a power bank to the back of your helmet or goggle kit and connecting it to the thermal imaging camera (USB-C connection). This also ensures an optimal balance.

Application AGM StingIR-640:
This thermal monocular is designed for both handheld and hands-free use. This makes it an ideal solution for a wide range of applications. Think of airsoft and tactical use, such as police and defense (Mil/LE) and any form of security, rescue services or the coast guard. In addition, the StingIR also lends itself to night navigation, general nature observation and hunting. Using thermal imaging goggles, you can always observe and detect, regardless of the weather type or time of day.

1x AGM StingIR-640 Monocular Thermal Imaging Camera
1x Helmet bridge/Dovetail (bracket with adapter)
2x Eyecup
1x Objective lens cap
1x Weaver/Picatinny rail adapter with screws
1x USB-C cable
1x 18650 battery adapter cap
1x Lens cloth
1x Hard carrying case

  • Brand: AGM
  • Type: Monocular (for 1 eye)
  • Detector type: 640×512 VOx (12µm)
  • Display quality: 1028×768 OLED
  • Lens diameter: 25mm
  • Observation modes: Thermal image only, Scouting, Picture-in-Picture (PiP)
  • Type of image focus: Manual Focus
  • Field of view: 16×12
  • Detection distance: Short-range (max. 500m), Medium-range (max. 1.000m), Long-range (max. 1.500m)
  • Usage: Airsoft / Paintball, Security, Hands-free, Rescue, Police / Defence
  • Other functionalities: Magnetic compas, Inclinometer, Picture-in-Picture
  • Color palettes: White Hot, Black Hot, Rainbow, Outdoor Alert
  • Refresh Rate: 50 Hz
  • Recording Functionality: No
  • Zoom: 1x to 8x
  • Diopter Adjustment: -5 to +5
  • Weight: 220 grams
  • Dimensions: 140 x 70 x 50mm
  • Attachments: USB-C
  • Power supply: 1x 18650 battery, 1x CR123 battery, 1x RCR123a battery, Continuous power (via USB-C)
  • Working Temperature: -10 to +60 degrees Celsius
  • Water and impact resistance: IP67 (submersible) | Resistant to a 1m fall on concrete
  • Warranty: 3 years
