AGM NVG40 Tactical Night Vision Binocular Gen 2+

This item is supplied on demand. Contact us for the delivery time.

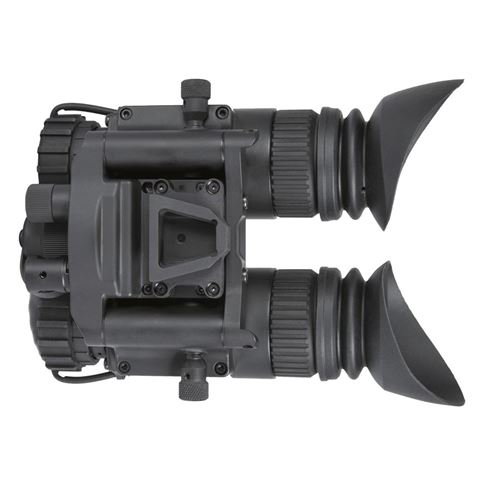

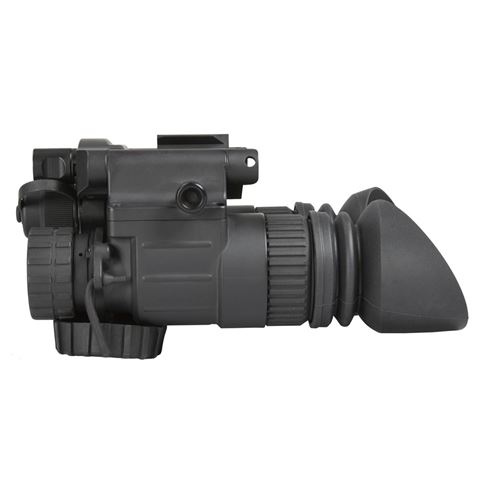

The NVG40 from the American AGM Global Vision is a night vision binocular/goggles from the absolute top segment of the market. The night vision viewer is designed to MIL-spec characteristics and is the solution for tactical applications, professional users, airsofters and any other demanding enthusiast. The device is only 11.5 cm long, weighs less than 650 grams and gives you the ability to adjust the interpupillary distance. This makes the AGM NVG40 ideal for use as night vision goggles.

Quality of the IIT and optics;
The night vision binocular features two Gen2+ PHOTONIS Commercial image intensifier tubes in Green Phosphor (P43). These have a Figure of Merit or FOM of 1400-1800 and a resolution of 51-64 lp/mm. The viewer has clean tubes, so there are no green ‘spots’ visible in the image. So you can see the environment razor sharp, in the familiar night vision green color. The NVG40 is also available in White Phosphor, with a Photonis ECHO IIT or with a 51 degree field of view.

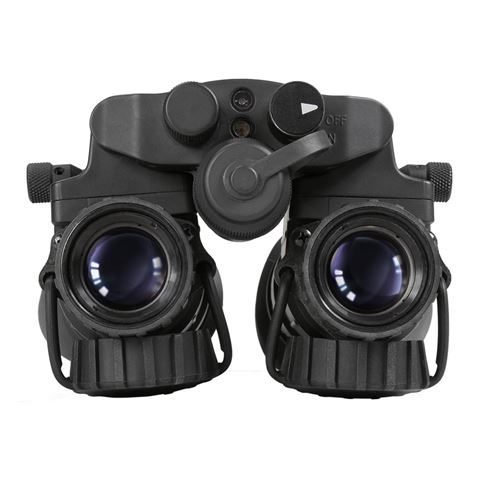

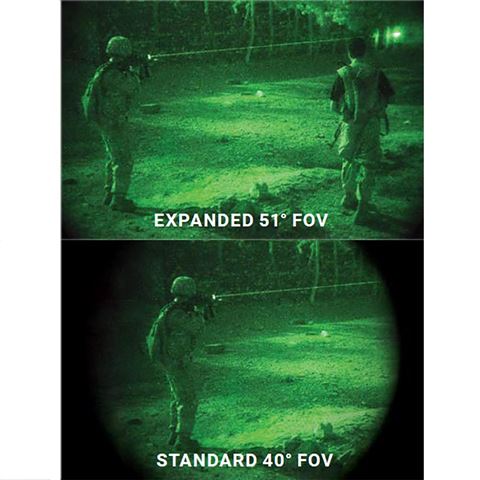

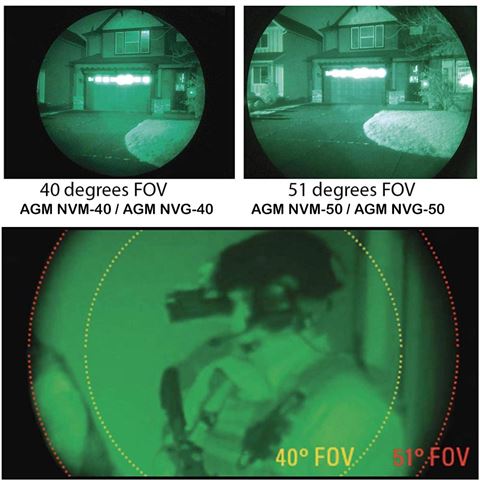

The scope features an optical 1x magnification, a 26mm objective lens and focuses already from 25cm. With a large field of view of 40 degrees you can see a lot of the environment at a glance and keep moving targets in FOV easily. Both lenses are fully multi-coated to protect against scratches and dirt.

External features:

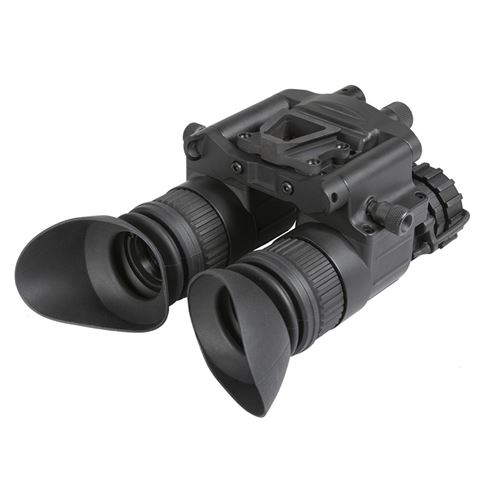

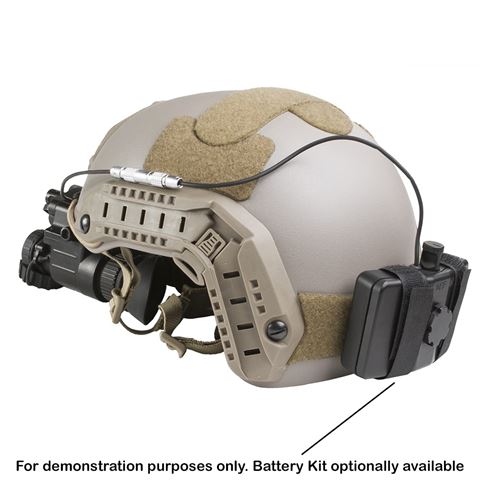

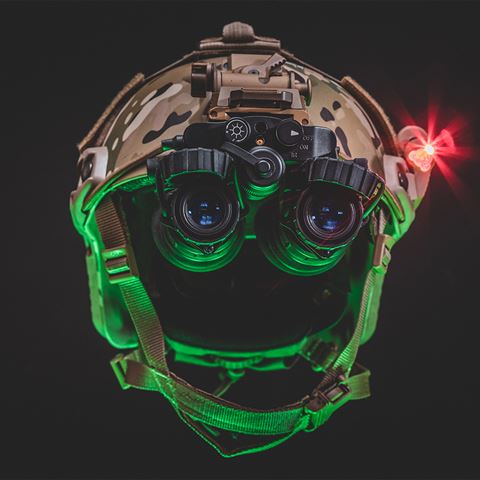

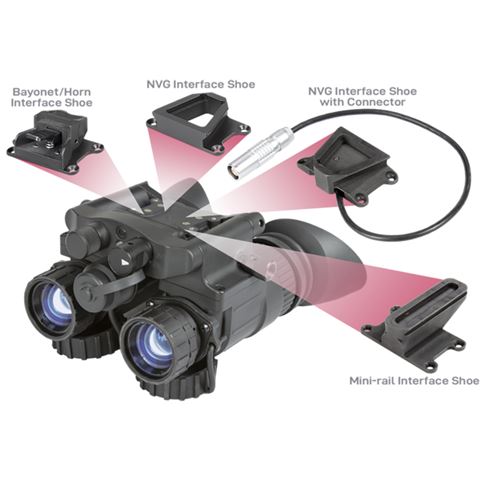

The device features a built-in infrared illuminator to allow you to see even when there is no light at all. This can be useful, for example, when you are in a dark room without windows and you want to be able to read texts. You can set the IR Illuminator in terms of power in two levels. On the top of the body is an NVG interface, which allows you to connect the AGM NVG40 to a helmet or goggle kit for hands-free use. Power is provided by the included CR123 battery (additional batteries can be found in the optional accessories). With one battery, you can use the scope for up to 20 hours.

Advantages of a binocular:
Because a night vision binocular features two IITs, it captures twice as much light as a monocular or bi-ocular. This results in a much higher light output. This not only gives you a very bright image, but you can also use the scope in situations where there is hardly any light at all. A binocular also has the advantage of being comfortable for long-term, continuous use. This is because you do not have to keep squeezing one eye shut, as is the case with a monocular.

Application AGM NVG40 (NL1i):
The AGM NVG40 is all you need when you are looking for the best that night vision has to offer. This makes it suitable for professionals and tactical applications. But also for use during hunting, security or for the demanding private user, this is an excellent choice.

This night vision optics is equipped with an image intensifier tube, so you cannot use the device during the day. The device will automatically shut down when too much light is present.

Technical data:
• Image intensifier tube (IIT): PHOTONIS Commercial Gen.2+
• Diopter adjustment: -6 to +2
• Adjustable interpupillary distance (56 to 72mm)
• Focuses from 25 cm
• Fully multi-coated objective lenses
• Standby mode and bright light cut-off
• Three LED indicators in FOV: IR, battery status and excessive light
• Operating time: up to 20 hours with one CR123A battery (included)
• AGM Global Vision Article: 14NV4122453011i (NL1i)

1x AGM NVG40 Night Vision Binocular
1x Carrying case
1x Lens cloth
1x CR123A battery
1x User manual
1x Full-color packaging

  • Brand: AGM
  • Type of night vision viewer: Night vision with image intensifier tube (IIT)
  • Quality: IIT Photonis Commercial Gen2+ (Manual Gain)
  • Usage: Airsoft / Shooting, Astronomy, Security, Defence / Police, Hunting, Nature observations, Navigation, Rescue operations, Survival / Safari, Tactical, Water
  • sports / boating / fishing
  • Infrared integrated: Yes
  • Viewing: Green phosphor
  • Weight: 645 grams
  • Warranty: 3 years with registered product
  • Gas-filled/waterproof: Yes
  • Display quality: 51-64 lp/mm
  • For daytime use?: No
  • Power: 1x CR123A battery (included)
  • Operational temperature: -40 to +50 degrees Celsius
