AGM NVG50 ECHO Tactical Night Vision Binocular

 6,999.00
This item is supplied on demand. Contact us for the delivery time.

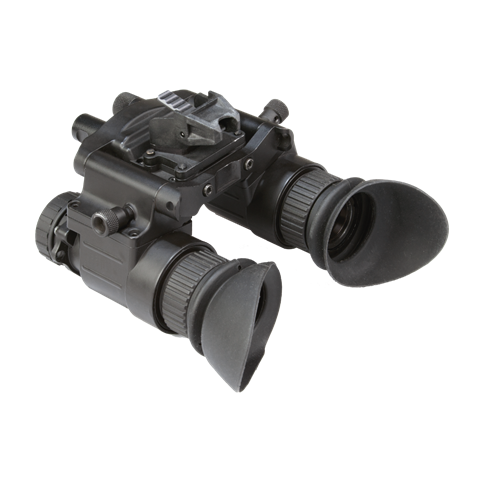

The AGM NVG50 is a compact night vision binocular/goggle which features a Photonis ECHO Autogated Green Phosphor imaging intensifier tube and a 51 degree field of view. It doesn’t get any better than this.

The compact night vision goggles are designed to MIL-spec specifications, making it an indispensable night vision goggle for tactical applications, professional users, airsofters and any other discerning enthusiast. The device is less than 12 cm long, weighs only 615 grams and can easily be attached to helmets and headsets.

Quality of the image intensifier tube:
The night viewer features two Gen2+ PHOTONIS ECHO Autogated image intensifier tubes in Green Phosphor (P43). These generally have a FOM (Figure of Merit) of 1600-2000 and a resolution of 57-74 lp/mm. The night viewer has clean tubes, so there are no green ‘spots’ visible in the image. So you can see the environment razor sharp, in navy green color. We can also supply the NVG50 in ECHO White Phosphor.

Characteristics of the optics:
The night viewer has an optical 1x magnification, a 19mm objective and focuses from 25 cm. With an extremely large field of view of 51 degrees you can see a lot of the environment at a glance and keep moving targets in view easily. Both objectives are fully multi-coated to protect against scratches and dirt. A 3x magnifying lens is optionally available.

External features:

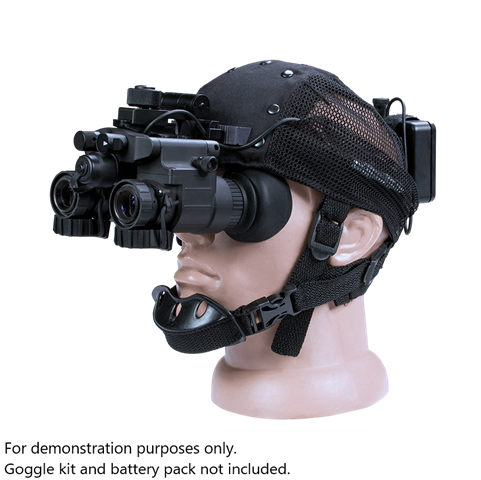

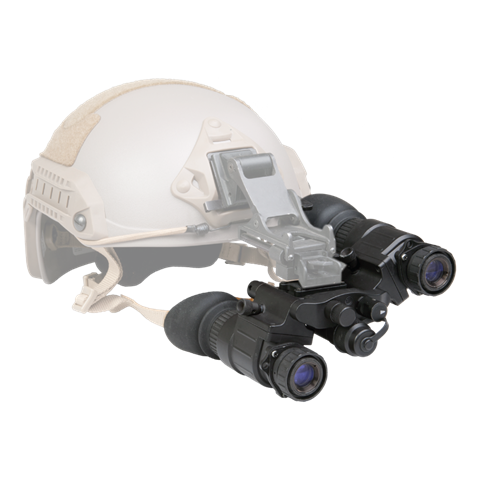

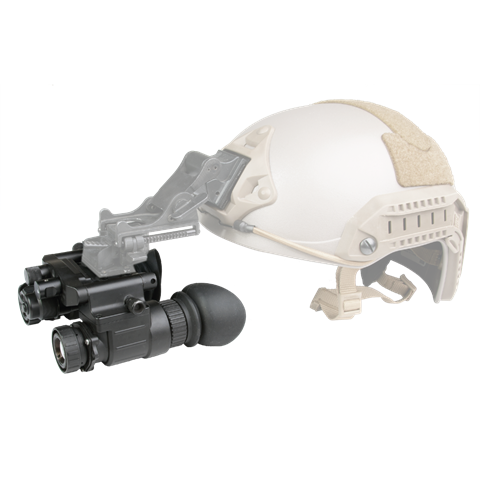

The NVG50 has a built-in infrared illuminator to allow you to see even when no light is present. This can be useful, for example, when you are in a dark room with four concrete walls, and no windows. You can set the IR in terms of power in two levels. On the top of the body is an NVG interface, which allows you to connect the night viewer to a helmet or goggle kit for hands-free use. Power is provided by the included CR123 battery (see optional accessories for additional batteries). With just one battery, you can use the scope for up to 20 hours. You can also set the pupil distance and the diopter to correct for your eye.

Advantages of a binocular:
Because a night vision binocular has two image intensifier tubes, it captures twice as much light as a monocular or bi-ocular. This results in a much higher light output. This not only gives you a very bright image, but you can also use it in situations where there is hardly any ambient light present. A binocular also has the advantage that it is comfortable for long-term, continuous use. You do not have to close one eye at a time, as is the case with a monocular.

Application AGM NVG50 Photonis ECHO (NL1i):
The AGM NVG50 is all you need when you are looking for the best that night vision has to offer. This makes it suitable for professionals, tactical applications and airsoft. But also for use during hunting, at sea or for any other demanding user, this is an excellent choice.

This night vision optics is equipped with an image intensifier tube, so you cannot use the device during the day. The device will automatically shut down when too much light is present.

Technical data:
• Image intensifier tube (IIT): PHOTONIS ECHO Autogated Green Phosphor Gen2+
• Diopter adjustment: -6 to +2
• Adjustable interpupillary distance (56 to 72mm)
• Focuses from 25 cm
• Fully multi-coated objective lenses
• Standby mode and bright light cut-off
• Three LED indicators in FOV: IR, battery status and excessive light
• Operating time: up to 20 hours with one CR123A battery (included)
• AGM Global Vision Article: 14NV5122453011E (NL1i)

Included:
1x AGM NVG50 Night Vision Binocular (IIT Photonis ECHO Green Phosphor)
1x Carrying case
1x Lens cloth
1x CR123A battery
1x User manual
1x Full-color packaging

  • Brand: AGM
  • Type of night vision viewer: Night vision with image intensifier tube (IIT)
  • Quality: IIT Photonis ECHO Gen2+ (Autogated, Manual Gain)
  • Usage: Airsoft / Shooting, Security, Defence / Police, Hunting, Nature observations, Navigation, Rescue operations, Survival / Safari, Tactical
  • Magnification: 1x
  • Diameter objectief: 19mm
  • Infrared integrated: Yes
  • Viewing: Green phosphor
  • Color: Black
  • Dimensions: 118 x 112 x 74 mm
  • Weight: 615 grams
  • Warranty: 3 years with registered product
  • Gas-filled/waterproof: Yes
  • Display quality: 57-74 lp/mm
  • For daytime use?: No
  • Power: 1x CR123A battery (included)
  • Operational temperature: -40 to +50 degrees Celsius
